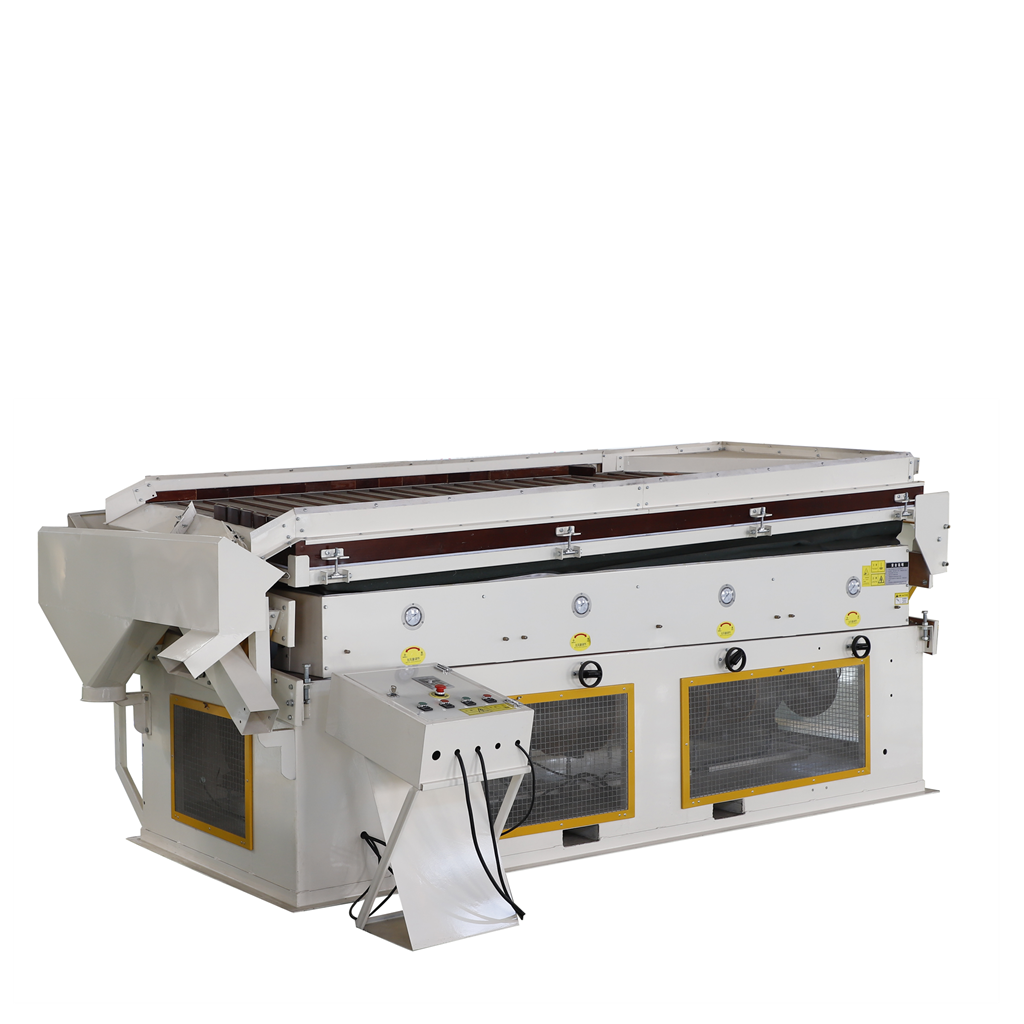

Green Coffee Bean Specific Gravity Separator 5CR-5 1-3T/H

Specific Gravity Separator 5CR-5 can do capacity1-3T/H , can remove impurity, broken beans and dust from green coffee bean, it adopts a positive pressure method, utilizing the combined effect of airflow and vibration friction on the materials. The higher-density materials sink to the bottom layer and move upward along the screen surface, while the lower-density materials float on the surface and flow downward, achieving density-based separation. It can be used for sorting various granular dry materials, removing grass stems, hemp ropes, dust, as well as immature, insect-damaged, moldy, and broken particles.


Products Description

Specific Gravity Separator 5CR-5 can do capacity1-3T/H , can remove impurity, broken beans and dust from green coffee bean, it adopts a positive pressure method, utilizing the combined effect of airflow and vibration friction on the materials. The higher-density materials sink to the bottom layer and move upward along the screen surface, while the lower-density materials float on the surface and flow downward, achieving density-based separation. It can be used for sorting various granular dry materials, removing grass stems, hemp ropes, dust, as well as immature, insect-damaged, moldy, and broken particles.

Paramter

Model 5CR-5 GREEN COFFEE BEAN SPECIFIC GRAVITY SEPARATOR (Density sorter)
voltage 380V 50-60Hz
Capacity 1-3T/Hour
Worktable Size 1.2*3m
Vibration Frequency 0-600 adjustment
Lateral Tilt Angle 0~6°
Longitudinal Tilt Angle 0~6°
Amplitude 7mm
Power 8.95kw
Machine dimension 3440*1630×1600(mm)
Weight 860kg

more Picture

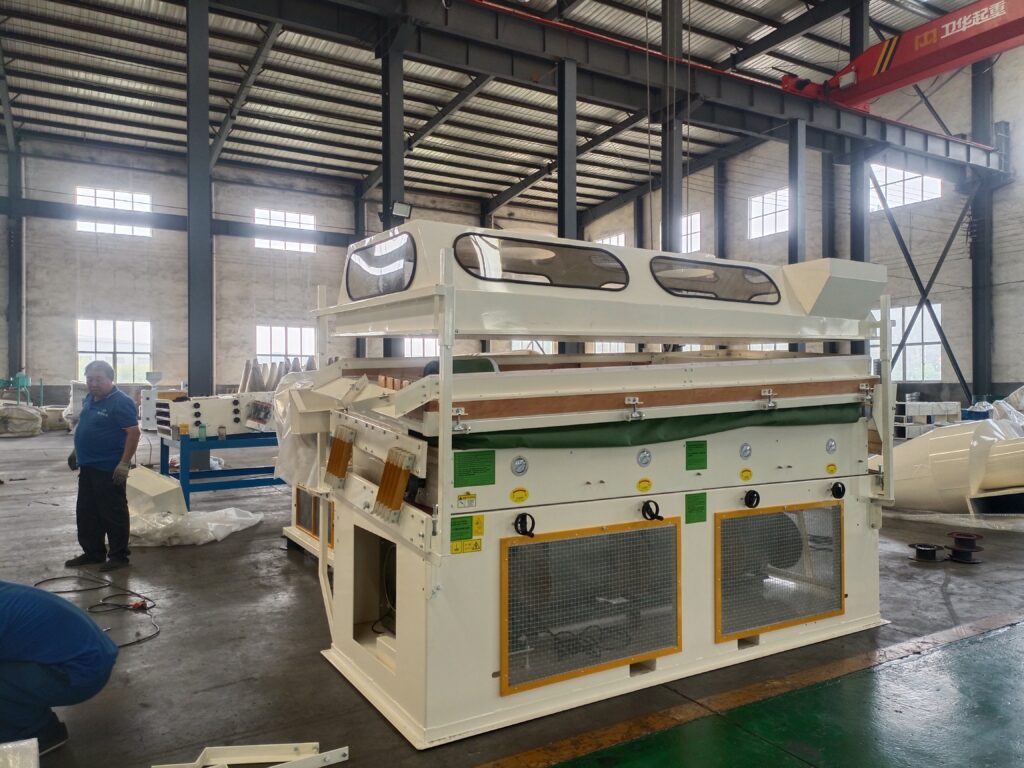

coffee bean density sorter

Coffee bean density sorter with customized cover

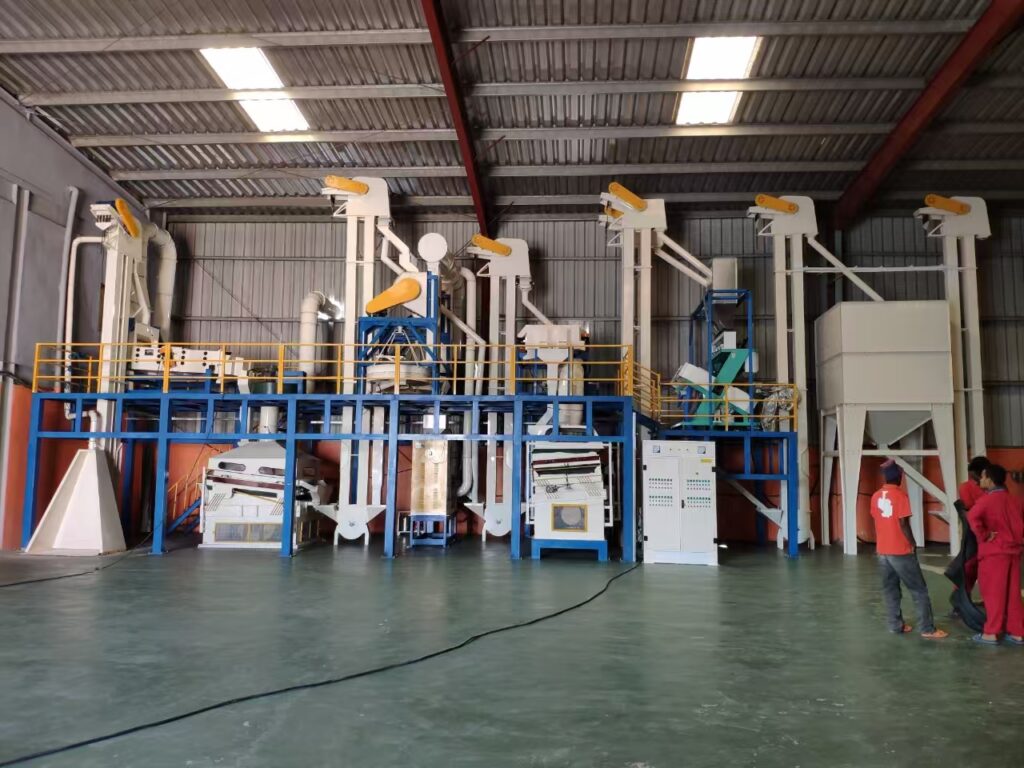

coffee processing plant

Coffee bean processing plant full set equipment
